Bind to a Data Table Declaratively

Note: This tutorial applies to WPF applications.

This tutorial provides step-by-step instructions for binding the C1Chart to a dataset declaratively. The data shows the information as a simple bar chart with one y-axis that represents the names of the products and one x-axis that represents the unit's price for each product. The products' ten most expensive products are displayed in descending order. The Bar chart uses one series to draw the unit price. A legend is not used since there is only one series.

The chart uses data from the sample Access database, Nwind.mdb. This tutorial assumes that the database file Nwind.mdb is in the Documents\ComponentOne Samples\Common directory, and refer to it by filename instead of the full path name for the sake of brevity.

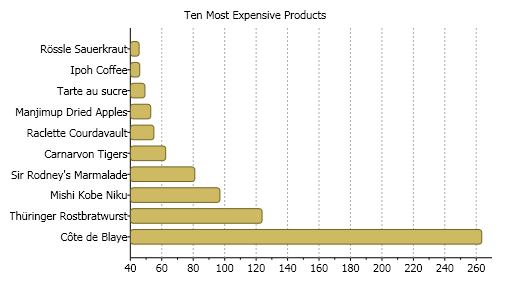

Completing this tutorial will produce a chart that looks like the following:

To bind C1Chart to a data table declaratively, complete the following steps:

Create a new WPF project in Visual Studio. For more information about creating a WPF project, see Getting Started with WPF Edition.
Add the C1.WPF.C1Chart reference to your project.
Add the C1Chart control to the Window. For more information see, Getting Started with ComponentOne Studio WPF Edition.

Once the C1Chart control is placed on the Window, the following XAML code is added:

XAML	Copy Code
Title="Window1" Height="300" Width="500" xmlns:c1chart="clr-namespace:C1.WPF.C1Chart;assembly=C1.WPF.C1Chart" Loaded="Window_Loaded"> <Grid> <c1chart:C1Chart Content="" Margin="10,10,10,18" Name="c1Chart1"> <c1chart:C1Chart.Data> <c1chart:ChartData> <c1chart:ChartData.ItemNames>P1 P2 P3 P4 P5</c1chart:ChartData.ItemNames> <c1chart:DataSeries Label="Series 1" Values="20 22 19 24 25" /> <c1chart:DataSeries Label="Series 2" Values="8 12 10 12 15" /> </c1chart:ChartData> </c1chart:C1Chart.Data> <c1chart:Legend DockPanel.Dock="Right" /> </c1chart:C1Chart> </Grid>

XAML

Copy Code

Title="Window1" Height="300" Width="500" xmlns:c1chart="clr-namespace:C1.WPF.C1Chart;assembly=C1.WPF.C1Chart" Loaded="Window_Loaded">
    <Grid>
        <c1chart:C1Chart Content="" Margin="10,10,10,18" Name="c1Chart1">
            <c1chart:C1Chart.Data>
                <c1chart:ChartData>
                    <c1chart:ChartData.ItemNames>P1 P2 P3 P4 P5</c1chart:ChartData.ItemNames>
                    <c1chart:DataSeries Label="Series 1" Values="20 22 19 24 25" />
                    <c1chart:DataSeries Label="Series 2" Values="8 12 10 12 15" />
                </c1chart:ChartData>
            </c1chart:C1Chart.Data>
            <c1chart:Legend DockPanel.Dock="Right" />
        </c1chart:C1Chart>
    </Grid>

Select the XAML tab and add the following namespace in the XAML code:

XAML	Copy Code
xmlns:sys="clr-namespace:System;assembly=mscorlib"

In the XAML markup, change the Title's Width from 300 to 500.
Within the <c1chart:C1Chart> tag modify the Margin to "0" and set the ChartType to "Bar". This will change the default chart's appearance from Column to Bar. Your XAML markup should appear like the following:

XAML	Copy Code
<Grid> <c1chart:C1Chart Margin="0" Name="c1Chart1" ChartType="Bar" Height="185" VerticalAlignment="Top"> <c1chart:C1Chart.Data> <c1chart:ChartData> <c1chart:DataSeries Label="Series 1" Values="20 22 19 24 25" /> <c1chart:DataSeries Label="Series 2" Values="8 12 10 12 15" /> </c1chart:ChartData> </c1chart:C1Chart.Data> <c1chart:Legend DockPanel.Dock="Right" /> </c1chart:C1Chart> <TextBlock DockPanel.Dock="Top" Text="Ten Most Expensive Products" HorizontalAlignment="Center"/> </Grid>

XAML

Copy Code

<Grid>
        <c1chart:C1Chart Margin="0" Name="c1Chart1" ChartType="Bar" Height="185" VerticalAlignment="Top">
            <c1chart:C1Chart.Data>
                <c1chart:ChartData>
                    <c1chart:DataSeries Label="Series 1" Values="20 22 19 24 25" />
                    <c1chart:DataSeries Label="Series 2" Values="8 12 10 12 15" />
                </c1chart:ChartData>
            </c1chart:C1Chart.Data>
            <c1chart:Legend DockPanel.Dock="Right" />
        </c1chart:C1Chart>
        <TextBlock DockPanel.Dock="Top" Text="Ten Most Expensive Products" HorizontalAlignment="Center"/>
</Grid>

Your chart appears like the following:

Create a label after the closing c1chart:C1Chart tag and label it as "Ten Most Expensive Products".

XAML	Copy Code
<TextBlock DockPanel.Dock="Top" Text="Ten Most Expensive Products" HorizontalAlignment="Center"/>

Your XAML markup should now appear like the following:

XAML	Copy Code
<Grid> <c1chart:C1Chart Margin="0" Name="c1Chart1" ChartType="Bar" Height="185" VerticalAlignment="Top"> <c1chart:C1Chart.Data> <c1chart:ChartData> <c1chart:DataSeries Label="Series 1" Values="20 22 19 24 25" /> <c1chart:DataSeries Label="Series 2" Values="8 12 10 12 15" /> </c1chart:ChartData> </c1chart:C1Chart.Data> <c1chart:Legend DockPanel.Dock="Right" /> </c1chart:C1Chart> <TextBlock DockPanel.Dock="Top" Text="Ten Most Expensive Products" HorizontalAlignment="Center"/> </Grid>

XAML

Copy Code

<Grid>
        <c1chart:C1Chart Margin="0" Name="c1Chart1" ChartType="Bar" Height="185" VerticalAlignment="Top">
            <c1chart:C1Chart.Data>
                <c1chart:ChartData>
                    <c1chart:DataSeries Label="Series 1" Values="20 22 19 24 25" />
                    <c1chart:DataSeries Label="Series 2" Values="8 12 10 12 15" />
                </c1chart:ChartData>
            </c1chart:C1Chart.Data>
            <c1chart:Legend DockPanel.Dock="Right" />
        </c1chart:C1Chart>
        <TextBlock DockPanel.Dock="Top" Text="Ten Most Expensive Products" HorizontalAlignment="Center"/>
</Grid>

Add the following using/imports directives in your code-behind file:

Visual Basic	Copy Code
//WPF Imports System.Data Imports System.Data.OleDb Imports C1.WPF.C1Chart

C#	Copy Code
//WPF using System.Data; using System.Data.OleDb; using C1.WPF.C1Chart;

Declare the variable for the DataSet outside the Window_Loaded procedure, then add the following code to retrieve the products and unit price from the database:

Visual Basic	Copy Code
Private _dataSet As DataSet Private Sub Window_Loaded(ByVal sender As Object, ByVal e As RoutedEventArgs) ' create connection and fill data set Dim mdbFile As String = "c:\Program Files\ComponentOne Studio.NET 2.0\Common\nwind.mdb" Dim connString As String = String.Format("Provider=Microsoft.Jet.OLEDB.4.0; Data Source={0}", mdbFile) Dim conn As New OleDbConnection(connString) Dim adapter As New OleDbDataAdapter("SELECT TOP 10 ProductName, UnitPrice" & Chr(13) & "" & Chr(10) & " FROM Products ORDER BY UnitPrice DESC;", conn) _dataSet = New DataSet() adapter.Fill(_dataSet, "Products") ' set source for chart data c1Chart1.Data.ItemsSource = _dataSet.Tables("Products").Rows End Sub

Visual Basic

Copy Code

Private _dataSet As DataSet
Private Sub Window_Loaded(ByVal sender As Object, ByVal e As RoutedEventArgs)
    ' create connection and fill data set
    Dim mdbFile As String = "c:\Program Files\ComponentOne Studio.NET 2.0\Common\nwind.mdb"
    Dim connString As String = String.Format("Provider=Microsoft.Jet.OLEDB.4.0; Data Source={0}", mdbFile)
    Dim conn As New OleDbConnection(connString)
    Dim adapter As New OleDbDataAdapter("SELECT TOP 10 ProductName, UnitPrice" & Chr(13) & "" & Chr(10) & " FROM Products ORDER BY UnitPrice DESC;", conn)
    _dataSet = New DataSet()
    adapter.Fill(_dataSet, "Products")
    ' set source for chart data
    c1Chart1.Data.ItemsSource = _dataSet.Tables("Products").Rows
End Sub

C#	Copy Code
DataSet _dataSet; private void Window_Loaded(object sender, RoutedEventArgs e) { // create connection and fill data set string mdbFile = @"c:\Program Files\ComponentOne Studio.NET 2.0\Common\nwind.mdb"; string connString = string.Format("Provider=Microsoft.Jet.OLEDB.4.0; Data Source={0}", mdbFile); OleDbConnection conn = new OleDbConnection(connString); OleDbDataAdapter adapter = new OleDbDataAdapter(@"SELECT TOP 10 ProductName, UnitPrice FROM Products ORDER BY UnitPrice DESC;", conn); _dataSet = new DataSet(); adapter.Fill(_dataSet, "Products"); // set source for chart data c1Chart1.Data.ItemsSource = _dataSet.Tables["Products"].Rows; }

Copy Code

DataSet _dataSet;
    private void Window_Loaded(object sender, RoutedEventArgs e)
    {
      // create connection and fill data set
        string mdbFile = @"c:\Program Files\ComponentOne Studio.NET 2.0\Common\nwind.mdb";
      string connString = string.Format("Provider=Microsoft.Jet.OLEDB.4.0; Data Source={0}", mdbFile);
      OleDbConnection conn = new OleDbConnection(connString);
  OleDbDataAdapter adapter =
    new OleDbDataAdapter(@"SELECT TOP 10 ProductName, UnitPrice
    FROM Products ORDER BY UnitPrice DESC;", conn);
      _dataSet = new DataSet();
      adapter.Fill(_dataSet, "Products");

      // set source for chart data
      c1Chart1.Data.ItemsSource = _dataSet.Tables["Products"].Rows;
    }

Note: Make sure the file path for the mdbFile matches up to where you have the nwind.mdb database project located on your machine.

Click on the XAML tab so your are in XAML view and delete the following default data from ChartData:

XAML	Copy Code
<c1chart:ChartData.ItemNames>P1 P2 P3 P4 P5</c1chart:ChartData.ItemNames> <c1chart:DataSeries Label="Series 1" Values="20 22 19 24 25" /> <c1chart:DataSeries Label="Series 2" Values="8 12 10 12 15" />

The C1Chart control now appears empty on the Window.

Within the <c1chart:C1Chart.Data> tag add the ItemNameBinding property to the ChartData to specify the name of the element, in this case the label on the y-axis and the ValueBinding property to the DataSeries to specify the numerical value for the series.

XAML	Copy Code
<c1chart:ChartData ItemNameBinding="{Binding Path=[ProductName]}"> <c1chart:DataSeries ValueBinding="{Binding Path=[UnitPrice]}"/> </c1chart:ChartData>

Your XAML code for your project should look like the following:

XAML	Copy Code
<Window x:Class="Chart for WPF_QuickStart.Window1" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:sys="clr-namespace:System;assembly=mscorlib" Title="Window1" Height="300" Width="500" Loaded="Window_Loaded" xmlns:c1chart="clr-namespace:C1.WPF.C1Chart;assembly=C1.WPF.C1Chart"> <Grid> <c1chart:C1Chart Margin="0" Name="c1Chart1" ChartType="Bar"> <TextBlock DockPanel.Dock="Top" Text="Ten Most Expensive Products" HorizontalAlignment="Center"/> <c1chart:C1Chart.Data> <c1chart:ChartData ItemNameBinding="{Binding Path=[ProductName]}"> <c1chart:DataSeries ValueBinding="{Binding Path=[UnitPrice]}"/> </c1chart:ChartData> </c1chart:C1Chart.Data> </c1chart:C1Chart> </Grid> </Window>

XAML

Copy Code

<Window x:Class="Chart for WPF_QuickStart.Window1"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:sys="clr-namespace:System;assembly=mscorlib"
    Title="Window1" Height="300" Width="500" Loaded="Window_Loaded" xmlns:c1chart="clr-namespace:C1.WPF.C1Chart;assembly=C1.WPF.C1Chart">
    <Grid>
        <c1chart:C1Chart Margin="0" Name="c1Chart1" ChartType="Bar">
            <TextBlock DockPanel.Dock="Top" Text="Ten Most Expensive Products"
                 HorizontalAlignment="Center"/>
            <c1chart:C1Chart.Data>
                <c1chart:ChartData ItemNameBinding="{Binding Path=[ProductName]}">
                    <c1chart:DataSeries ValueBinding="{Binding Path=[UnitPrice]}"/>
                </c1chart:ChartData>
            </c1chart:C1Chart.Data>
        </c1chart:C1Chart>
    </Grid>
</Window>

Remove the <c1chart:Legend DockPanel.Dock="Right" /> tag from XAML to remove the built-in Legend control.
Run your project to ensure that everything is working correctly.

Observe the following at runtime

The chart is now populated with data from the Products table.
